Thermodyanamic system for domestic hot water STAFOR COMBI 200DHW

Designed for heating of hot water tanks till 200L. Any installed water tank can be used.

One of the best systems to provide domestic hot water for local building and housing with existing buffer tank (DHW cylinder) already installed!



​Technical parameters

STAFOR COMBIsystem part



№

Parameter Unit Data

STAFOR COMBI thermodynamic box

1.

Rated voltage single-phase AC In

V

230 ± 10%

2.

The minimum frequency of the AC

Hz

50

3.

Operating current, not more than

A

1.5-3

4.

Nominal thermal power

kW

4

5.

Applied operating power

kW

0.3-0.6

6.

Average STAFOR COMBI thermodynamic system COP (coefficient of performance)

-

2.5-5 (average 3.2)

7.

The maximum temperature at the outlet

°C

55

8.

The work temperature at the outlet

°C

45-55

9.

Thermodynamic box connections

Inch

inlet/outlet

½ male/½ female

10.

Hot sanitary water boiler, not more than

(any existing DHW can be used)

l

200

11.

Class of protection against electric shock

-

I

12.

The degree of protection from moisture

-

IP44

13.

STAFOR COMBI thermodynamic box weight

kg

30

14.

STAFOR COMBI thermodynamic box dimensions

mm

H/W/D

460/380/425

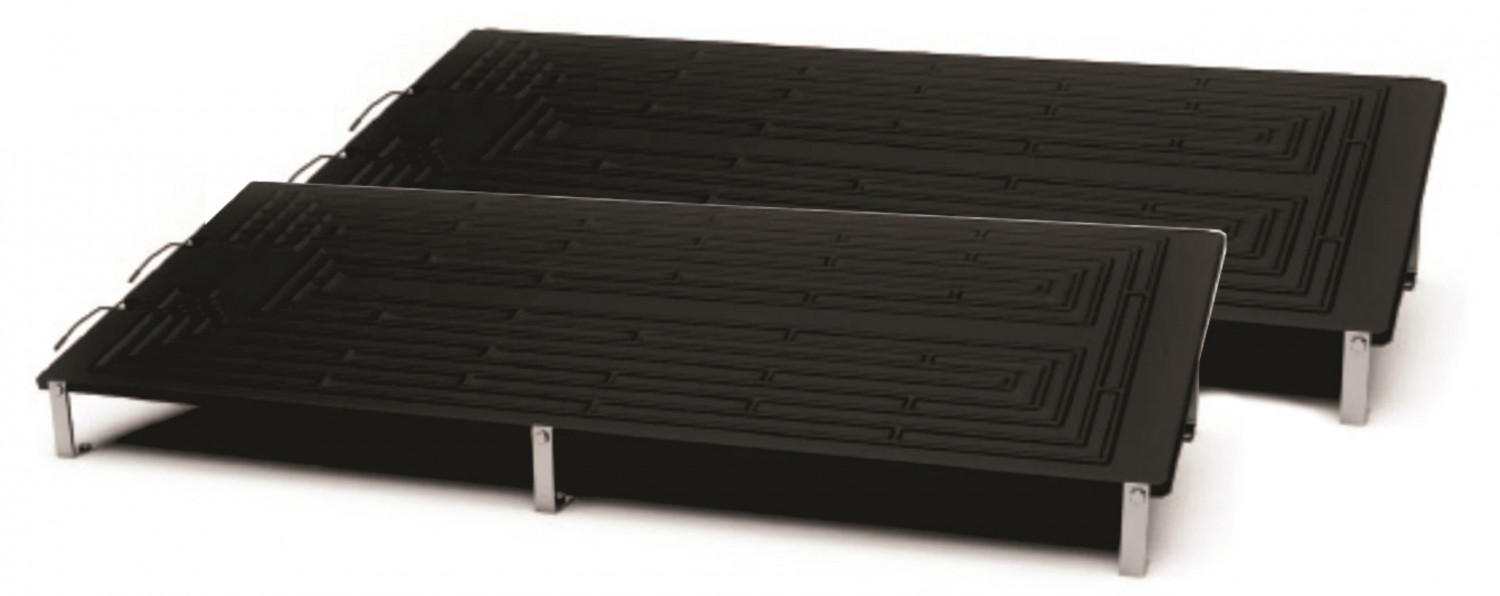

Thermodynamic panel

(collects solar radiation and ambient energy)

15.

Thermodynamic panel thermal power

kW

2

16.

Quantity of panels

Pcs.

1

17.

Ambient work temerature

°C

-5/45

18.

Thermodynamic panel weight

kg

6.2

19.

Thermodynamic panel connections

Inch

¼ - ⅜

20.

Thermodynamic panel dimensions

mm

H/W/D

1700/800/25

21.

Overall capture surface, both sides

2.7

22.

Cooling fluid

-

Chlorine free, non-toxic R134a

23.

Maximum working pressure

bar

8



System includes

Thermodynamic unit STAFOR COMBI * 1pcs.

Thermodynamic unit STAFOR COMBI includes compressor, heat exchanger, circulation pump and control panel.







Thermodynamic panel * 1pcs.

Works as evaporator and solar collector. Can be installed on facade, roof or ceiling.
